APS-143 Intelligence, Surveillance & Reconnaissance (ISR) Radar

APS-143C(V)3 OceanEye

Maritime Surveillance, Imaging & Tracking Radar

  • Share this page

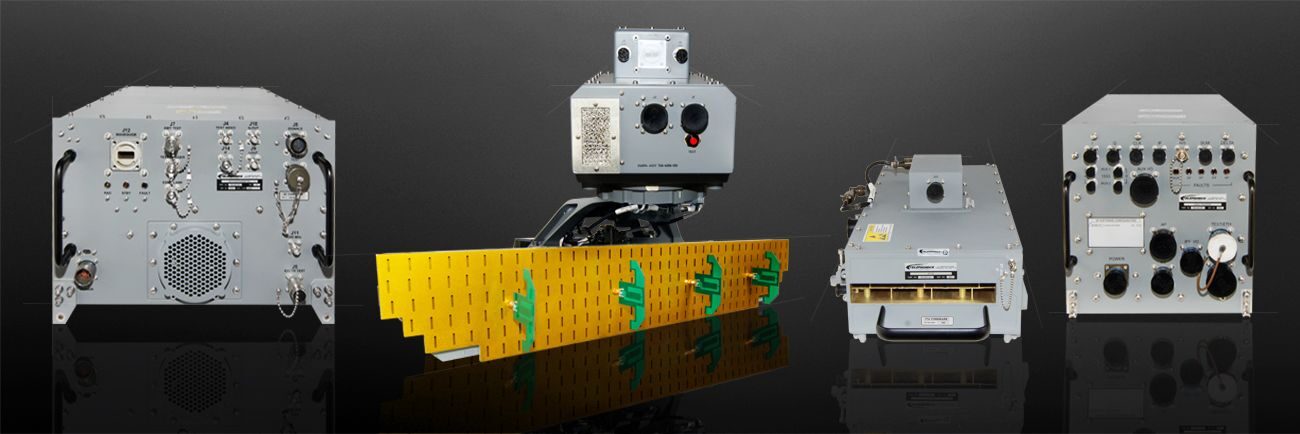

APS-143C(V)3 OceanEye

The APS-143C(V)3 OceanEye™ system is Telephonics’ top-performing maritime surveillance radar. Onboard a wide array of fixed- and rotary-wing aircraft worldwide, this multi-mode radar system offers a broad set of maritime long-range target search, detection and tracking modes in high-sea states. Complete with an optional integrated Identification Friend or Foe (IFF) interrogator, the APS-143C(V)3 OceanEye features Inverse Synthetic Aperture Radar (ISAR) and overland Synthetic Aperture Radar (SAR) imaging, weather avoidance and Search and Rescue Transponder (SART) beacon modes.

  • The Telephonics Advantage

    • Long-range maritime search and air-surveillance modes with fully integrated IFF interrogator provide target detections out to 200 NM
    • ISAR imaging at 1 m with range profiling mode
    • SAR imaging at 1 m resolution, with extended imaging ranges beyond 60 NM, including integrated range zoom
  • Missions Served

    • Anti-Surface Warfare (ASuW)
    • Search and rescue
    • Maritime patrol
    • Long-range maritime surveillance
    • Fisheries protection
    • Border surveillance
  • Modes

    • Long-range maritime search mode
    • Enhanced small target detection mode
    • ISAR
    • SAR
    • Optional integrated IFF
