MOSAIC

Active Electronically Scanned Array

  • Share this page

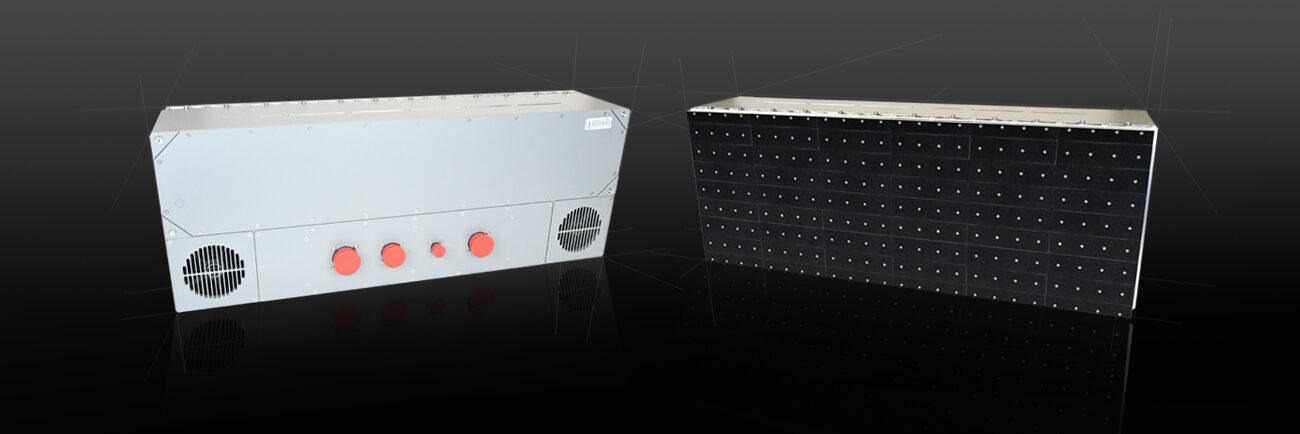

The MOSAIC™ system is Telephonics’ Active Electronically Scanned Array (AESA)-based radar providing operators and mission planners with multi-mode and multi-domain capabilities. MOSAIC AESA radar technology is optimized for maritime, littoral and overland surveillance missions for rotary- and fixed-wing applications. The system’s leading-edge technology is designed to meet and exceed the surveillance, imagery and tracking requirements of a wide range of mission environments.

  • Telephonics Advantage

    • Multi-beam for true simultaneous modes
    • 2D scanning
    • Air-cooled design significantly reduces Size, Weight and Power (SWaP)
    • Unique High Intensity Radiated Fields (HIRF) design meets MIL-STD-464
    • Graphical User Interface (GUI) with high-resolution moving map
    • Adaptive mode scheduler for management of simultaneous modes
    • Rules-based track management
  • Missions Served

    • Anti-Surface Warfare (ASuW)
    • Long-range maritime patrol
    • Overland surveillance
    • Air-to-air
    • Search and rescue
    • Maritime interdiction operations
    • Target identification for enhanced situational awareness
  • Modes

    • Long-range search
    • Inverse Synthetic Aperture Radar (ISAR)
    • Synthetic Aperture Radar (SAR)
    • Enhanced small target detection
    • Variable dwell search
    • Image-while-scan
    • Integrated Automatic Identification System (AIS) and Identification Friend or Foe (IFF)
    • Multi-channel Ground Moving Target Indicator (GMTI)
